Amplificator de putere NAD C 268, stereo

NAD
Share

Ridicare gratuita din showroom

Cod produs: ref.37098

In stoc

2.999 lei / Bucata Pret Black Friday 4.999 lei Vezi oferta REsigilate de la 2.899 lei

30 de zile perioada de retur

Garantie 24 luni

Transport gratuit pentru comenzi peste 100 RON in Romania

Livrare prin curier sau ridicare din showroom Bucuresti

Pentru plata în rate alegeți NETOPIA ca procesator de plăți.

6 Rate

Card Avantaj

6 Rate

Alpha Bank

6 Rate

Banca Transilvania

6 Rate

Garanti Bank

12 Rate

Raiffeisen Bank (in showroom)

Descriere

Putere de ieșire continuă în 8 și 4 ohmi (mod stereo) 80 W (ref. 20 Hz-20 kHz la THD nominal, ambele canale controlate)
Putere de ieșire continuă în 8 ohmi (mod Bridge) 300 W (ref. 20 Hz – 20 kHz la THD 0,03%)
THD (20 Hz – 20 kHz) 0,03 % (250 mW până la 80 W, 8 ohmi și 4 ohmi)
Putere dinamică IHF (mod Stereo, la 1 kHz 1 % THD) 8 Ohmi 120 W
4 Ohmi 200W
2 Ohmi 250W
Factor de amortizare 100 (ref. 8 ohmi 20 Hz – 20 kHz)
Sensibilitate de intrare (pentru 80 W în 8 ohmi) 750 mV/50 kohmi
Raspuns in frecventa ±0,3 dB (20 Hz – 20 kHz)

Alte informatii

Link producator: click aici

Manual: descarca fisierul

Fisa de produs: descarca fisierul

Cauti un pachet PROMO personalizat?

Spune-ne de ce ai nevoie si revenim cu o oferta " de nerefuzat "

Disponibil ca RE-Sigilat

Produs VERIFICAT de un expert Audio Monkey - functioneaza perfect si nu are niciun defect sau semn de utilizare. Beneficiaza de garantie si drept de retur la fel ca un produs nou.

Amplificator de putere NAD C 268 resigilat, stereo

Stoc: intreaba despre disponibilitate

Resigilat

2.899 lei

Specificatii tehnice Amplificator de putere NAD C 268, stereo

Amplifier
Continuous output power into 8 and 4 Ohms(Stereo mode): 80W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
Continuous output power into 8 Ohms (Bridge mode): 300W (ref. 20 Hz – 20 kHz at THD 0.03%)
THD (20 Hz – 20 kHz): <0.03 % (250 mW to 80 W, 8 Ohms and 4 Ohms)
IHF dynamic power (Stereo mode, at 1 kHz 1 % THD):
8 Ohms: 120W
4 Ohms: 200W
2 Ohms: 250W
Damping Factor: >100 (ref. 8 ohms 20 Hz – 20 kHz)
Input Sensitivity (for 80 W in 8 Ohms): 750mV/50kohms
Frequency Response: ±0.3 dB (20 Hz – 20 kHz)
General
Standby power: <0.5W
Unit Dimension (WxHxD):
Gross: 435 x 100 x 390 mm
Net weight: 7.3 kg (16.1 lbs)
Shipping weight: 8.7 kg (19.2 lbs)

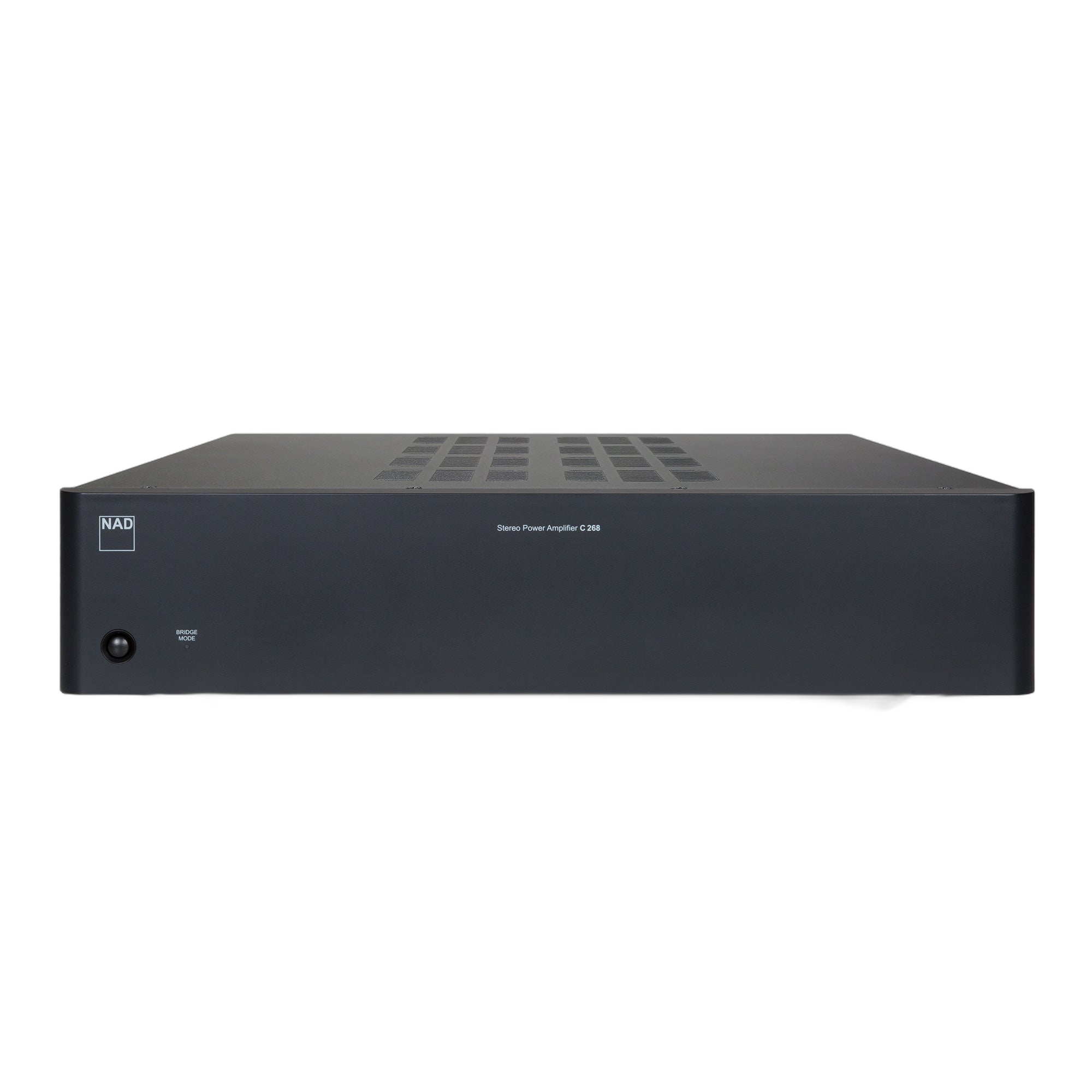

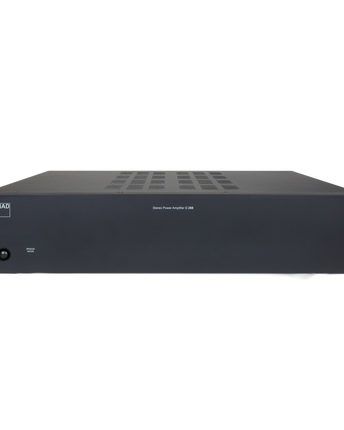

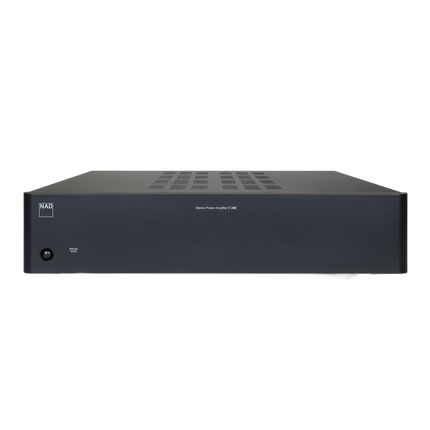

NAD C 268 Stereo Power Amplifier

A remarkably affordable stereo amplifier, the NAD C 268 has features and technology unmatched by other amplifiers in its class. Designed for multiple stereo setups, the C 268 can be used in a variety of scenarios, including traditional stacks with a preamplifier or for bi-amping your favourite loudspeakers. The NAD C 268 is even bridgeable, seamlessly transforming its bountiful output from 80 x 2 to an outstanding 300 watts. Although the C 268 may appear to be a straightforward power amplifier, this Classic Series amp is brimming with rich features that will elevate your system.

A black electronic device on a wooden table with plants in the background.

Amazing Flexibility

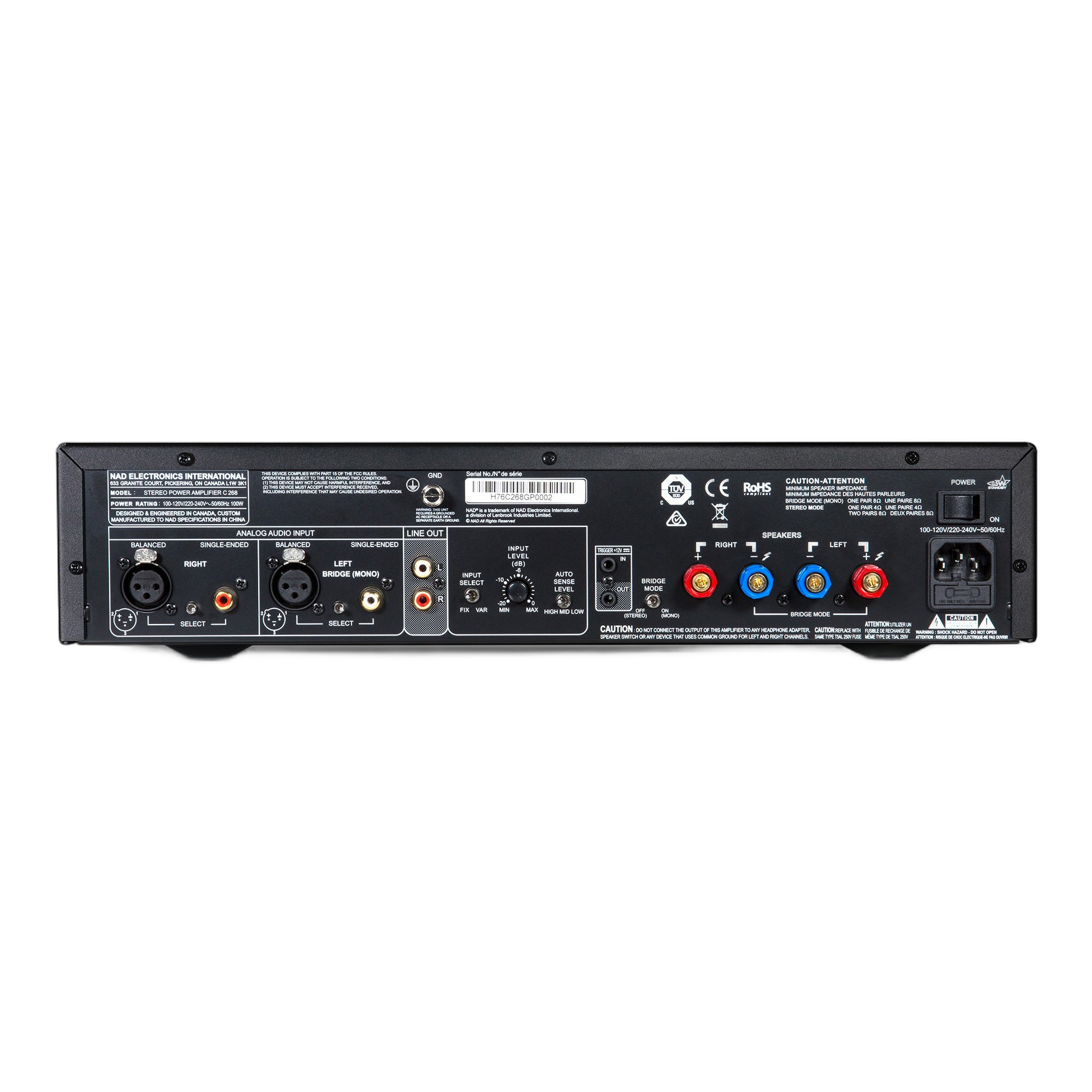

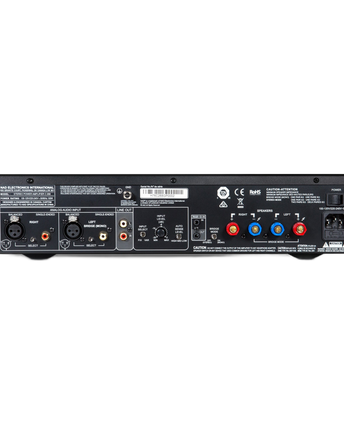

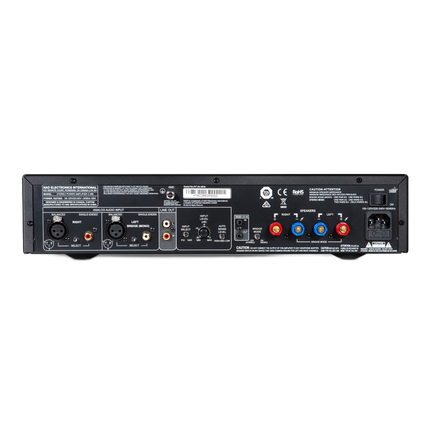

As with every amp in the Classic Series, we here at NAD have carefully thought through all the possible use cases and strategically chosen the most essential of features. Thanks to selectable balanced inputs, the C 268 is a natural mate for high-end preamps and processors. These inputs include a trim control useful for matching with other components, or for use in bi-amping speakers. A line out allows further addition of power on the same channel for extra speakers or subwoofers. On top of all this connectivity is a bridge switch that turns the C 268 into an amazingly powerful Monobloc amplifier.

Getting the Basics Right

As a member of NAD’s Classic Series, the C 268 delivers a richly satisfying sonic performance thanks to its “music-first” features. Accurate channel balance, proper input and output impedance characteristics, and low noise circuits all come together within this one stereo power amplifier. Additionally the C 268’s line inputs, both balanced and single-ended, can accommodate all kinds of analogue source components by offering ideal input impedance traits with linear ultra-low-noise buffer amplifiers to prevent any sonic degradation caused by unfitting loading of the source device.

Sophisticated Power

Having moved away from old fashioned linear power supplies and Class AB output stages, NAD has developed even better performing circuits based on switch mode power supplies and Class D output stages. Once thought to be inferior to traditional topologies, NAD’s advanced work in this area has resulted in some of the best performing amplifiers regardless of basic design principle. The overall design of the C 268 is very linear over a wide bandwidth, providing dramatic advances over previous models with consistent performance into all speaker loads.

SEE MORE

The power supply of the C 268 is capable of nearly 200 watts continuously and over 500 watts instantaneously, allowing for short term musical transients. NAD’s innovative asymmetrical PowerDrive fully utilizes every last watt available with its vast reserves of dynamic power available to accurately reproduce the most demanding music without distortion or compression. It can also operate with any AC mains voltage from 100V to 240V, and provides pure DC power to all the various stages of the C 268. This highly efficient supply also provides near perfect regulation of voltage across a wide range of conditions and provides a solid noise-free foundation for the amplifying stages.
The C 268 uses a customised version of the proven Hypex UcD output stage. This allows for massive power with nearly immeasurable distortion and noise in the audible range. Every detail of this design has been carefully crafted and perfectly executed to wring out ever last drop of performance.
