Features
Channels: 2
Current Feedback Topology: Yes
Full balanced circuitry architecture: No
Double Mono Power Amp construction: No
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium: Yes / No / No
Digital in: USB-B / optical / coaxial / USB-A: No / 2 / 1 / No
Sample Rate digital In: 192 kHz / 24-bit
USB-A: DSD / WAV / FLAC / AIFF / ALAC: No
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6: No
USB-B PCM sample rate: No
Asynchronous mode rear USB: No
Bit-perfect transmission: No
Ground isolator for DAC Mode operation: No
Tuner: DAB / DAB+ / FM (RDS): No
Bluetooth / aptX / NFC: No
Streaming audio from PC: No
Wi-Fi / Wired LAN: No
Internet radio: No
AirPlay 2: No
Roon Tested: No
Spotify Connect / Tidal / Deezer / others: No
Amazon Prime Music / Pandora: No
HEOS Multiroom and Streaming: No
Voice Control - Works with Amazon Alexa: No
Voice Control - Google Assist / Apple Siri: No
Voice Control - Microphone built-in: No
DSD-Audio network streaming: No
Lossy formats: MP3 / WMA / AAC: No
Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF: No
Gapless Playback: No
Remote APP: iDevice / Android: No
Analog Mode: No
HDAM version: SA3, SA2
Power Transformer: Toroidal / El: Yes / No
High Grade Audio Components: Yes
Customised Components: Yes
Symmetric PCB Layout: No
Aluminium extrusion heat sink: Yes
Copper Plated Chassis: No
Tri Tone Control (Bass / Mid / Treble): No
Balance / Bass / Treble / Loudness: Yes / Yes / Yes / No
Others
Marantz Musical Digital Filtering: Yes
Linear Drive Power Supply: Yes
Liniear volume control: Yes
BI-AMP and Multichannel option: No
Shottky diodes: Yes
Input buffer amp (all inputs / CD only): No / No
System block shielding: Copper / metal / none: No / No / Yes
Double Layer Bottom Plate: No
Low Noise OELD display: No
Low noise LCD display: No
Source Direct: Yes
Power Amp direct: No
5mm aluminium top plate: No

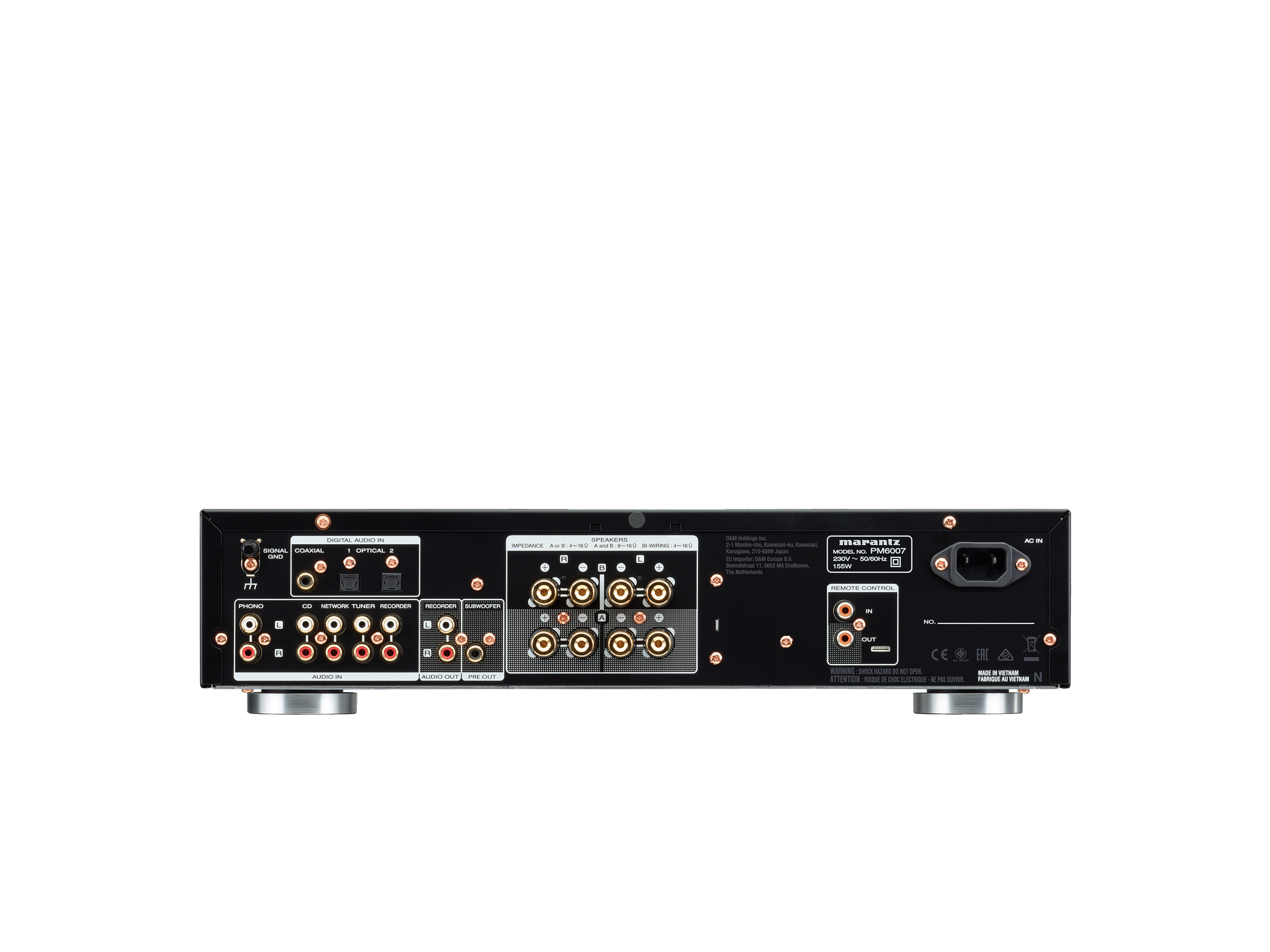

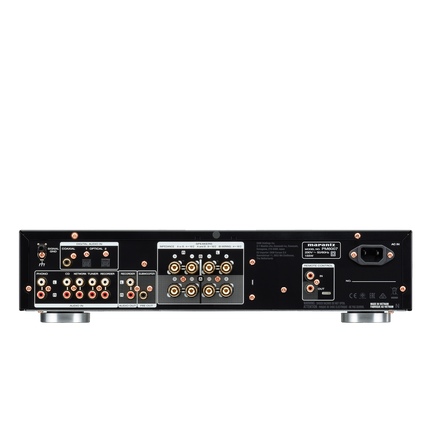

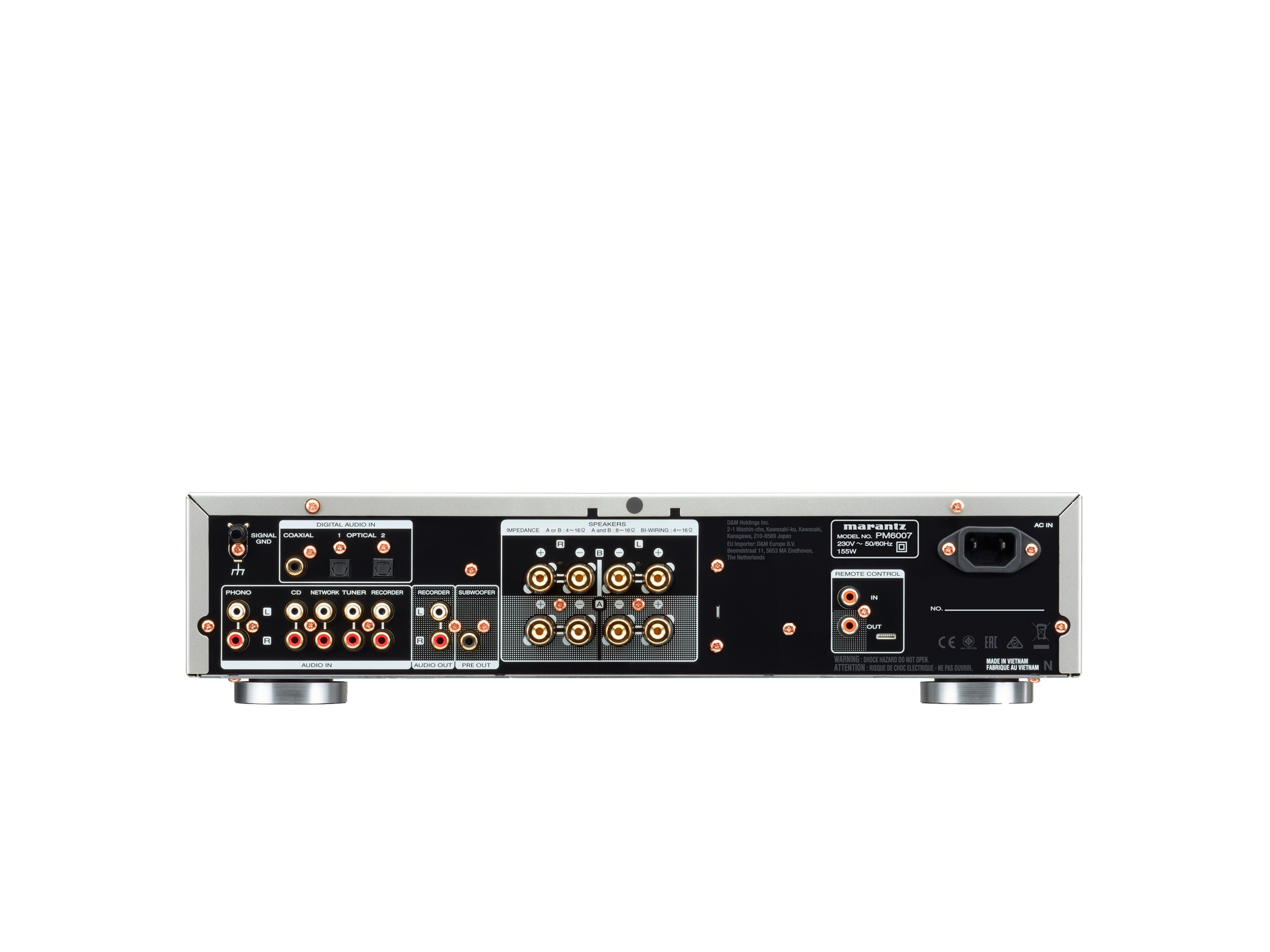

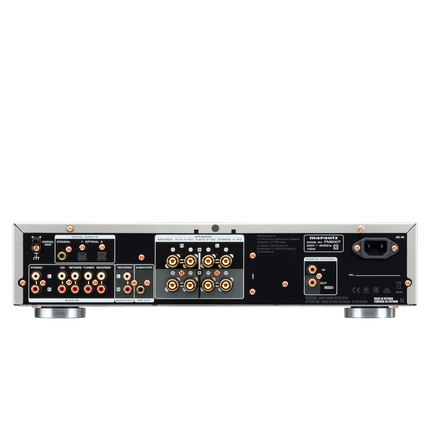

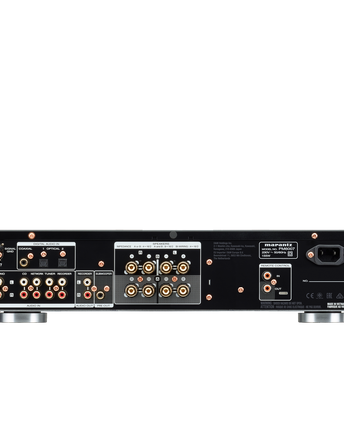

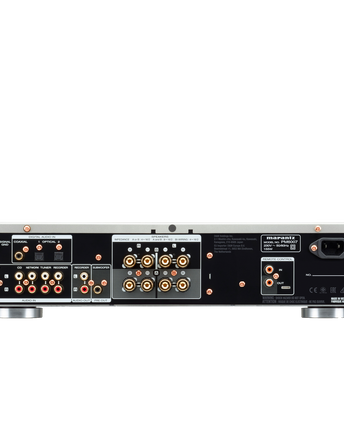

Inputs Outputs
Audio Inputs: 5
Digital in: USB-B / optical / coaxial / USB-A: No / 2 / 1 / No
Phono Input: MM / MC: Yes / No
Audio Outputs: 1
Balanced In / Out: No / No
Pre-out / Main-in: subwoofer / No
Power Amp Direct IN: No
HDMI: inputs / outputs: No
Gold Plated Cinch: Yes
Speaker A / B: Yes
Speaker Terminals: Metal (Gold) Screw
Number of terminals: 4
D-Bus: Yes
Floating Control Bus (3.5 mm mono jack x 2): No
Headphone Out: Yes
Headphone Gain Control (low / mid / high): No
Specifications
Power Output (8 / 4 Ohm RMS): 45 W / 60 W
Frequency response: 10 Hz - 70 kHz
Total Harmonic Distortion: 0.08%
Damping Factor: 100
Input Sensitivity: MM: 2.2 mV / 47 kOhm
Input Sensitivity: MC: No
Signal to Noise Ratio: MM/MC: 83 dB / No
Input Sensitivity: High level: 200 mV / 20 kOhm
Input Sensitivity: Balanced High level: No
Signal to Noise Ratio: High level: 102dB(2V input)
Input Sensitivity: Power Amp Direct IN: No
Signal to Noise Ratio: Power Amp Direct IN: No
General

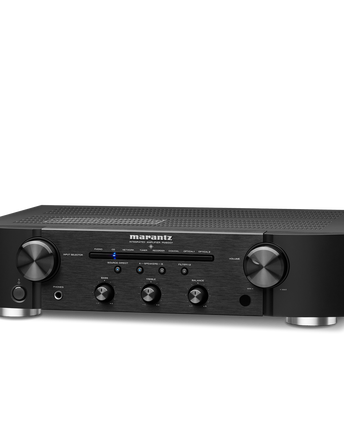

Available Colors: Gold / Silver / Black / Silver-Gold: No / No / Yes / Yes
Metal Front Panel: Yes
Power Consumption in W: 155
Standby Consumption in W: 0.3
Auto Power off: Yes
Detachable Power Cable: Yes
Remote Control: RC004MCD
System Remote Function: Yes
Maximum Dimensions (W x D x H) in mm: 440 x 370 x 105
Weight in kg: 7.6
Carton Maximum Dimensions (W x D x H) in mm: 517 x 189 x 468
Carton Weight (inc. product) in kg: 9.7
