Features
Aluminium extrusion heat sink: Yes (Separate)
Balance / Bass / Treble / Loudness: Yes / Yes / Yes / No
Channels: 2
Current Feedback Topology: Yes
Customised Components: Yes
Digital in: USB-B / optical / coaxial / USB-A: No / No / No / No
HDAM version: SA3, SA2
High Grade Audio Components: Yes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium: No / No / Yes
Power Transformer: Toroidal / El: SMPS
Symmetric PCB Layout: Yes
General
Auto Power off: Yes
Carton Maximum Dimensions (W x D x H) in mm: 534 x 522 x 255
Carton Weight (inc. product) in kg: 17.6
Detachable Power Cable: Yes
Maximum Dimensions (W x D x H) in mm: 443 x 431 x 130
Metal Front Panel: Yes
Power Consumption in W: 130
Remote Control: RC002PMND
Standby Consumption in W: 0.2
System Remote Function: Yes
Weight in kg: 14.8

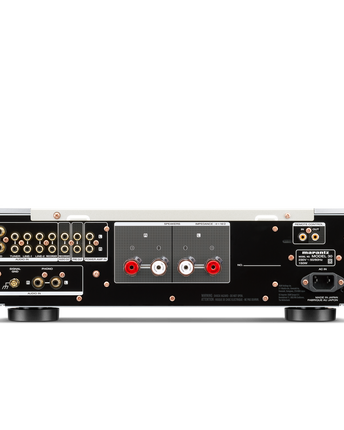

Inputs Outputs
Audio Inputs: 6
Audio Outputs: 1
Balanced In / Out: No / No
D-Bus: Yes
Digital in: USB-B / optical / coaxial / USB-A: No / No / No / No
Floating Control Bus (3.5 mm mono jack x 2): No
Gold Plated Cinch: Yes
HDMI: inputs / outputs: No
Headphone Gain Control (low / mid / high): No
Headphone Out: Yes
Number of terminals: 2
Phono Input: MM / MC: Yes / Yes
Power Amp Direct IN: Yes
Pre-out / Main-in: Yes / No
Speaker A / B: No
Speaker Terminals: Marantz SPKT-100+
Others
5mm aluminium top plate: No
BI-AMP and Multichannel option: No
Double Layer Bottom Plate: Yes
Input buffer amp (all inputs / CD only): No / No
Linear Drive Power Supply: Yes (pre-amplifier stage)
Liniear volume control: Yes
Low noise LCD display: No
Low Noise OELD display: Yes
Marantz Musical Digital Filtering: No
Power Amp direct: No
Shottky diodes: Yes
Source Direct: No
System block shielding: Copper / metal / none: Yes / No / No
Specifications
Damping Factor: 500
Frequency response: 5 Hz - 50kHz
Input Sensitivity: Balanced High level: No
Input Sensitivity: High level: 220 mV / 13 kohm
Input Sensitivity: MC: 250
Input Sensitivity: MM: 2.3 mV / 39 kohm
Input Sensitivity: Power Amp Direct IN: No
Power Output (8 / 4 Ohm RMS): 100 W / 200 W
Signal to Noise Ratio: High level: 107 dB(2V input/Rated output)
Signal to Noise Ratio: MM/MC: 88 / 75 dB
Signal to Noise Ratio: Power Amp Direct IN: No
Total Harmonic Distortion: 0.005%
