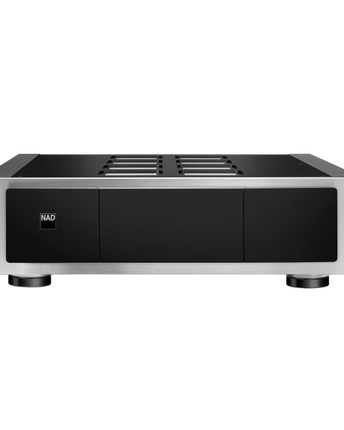

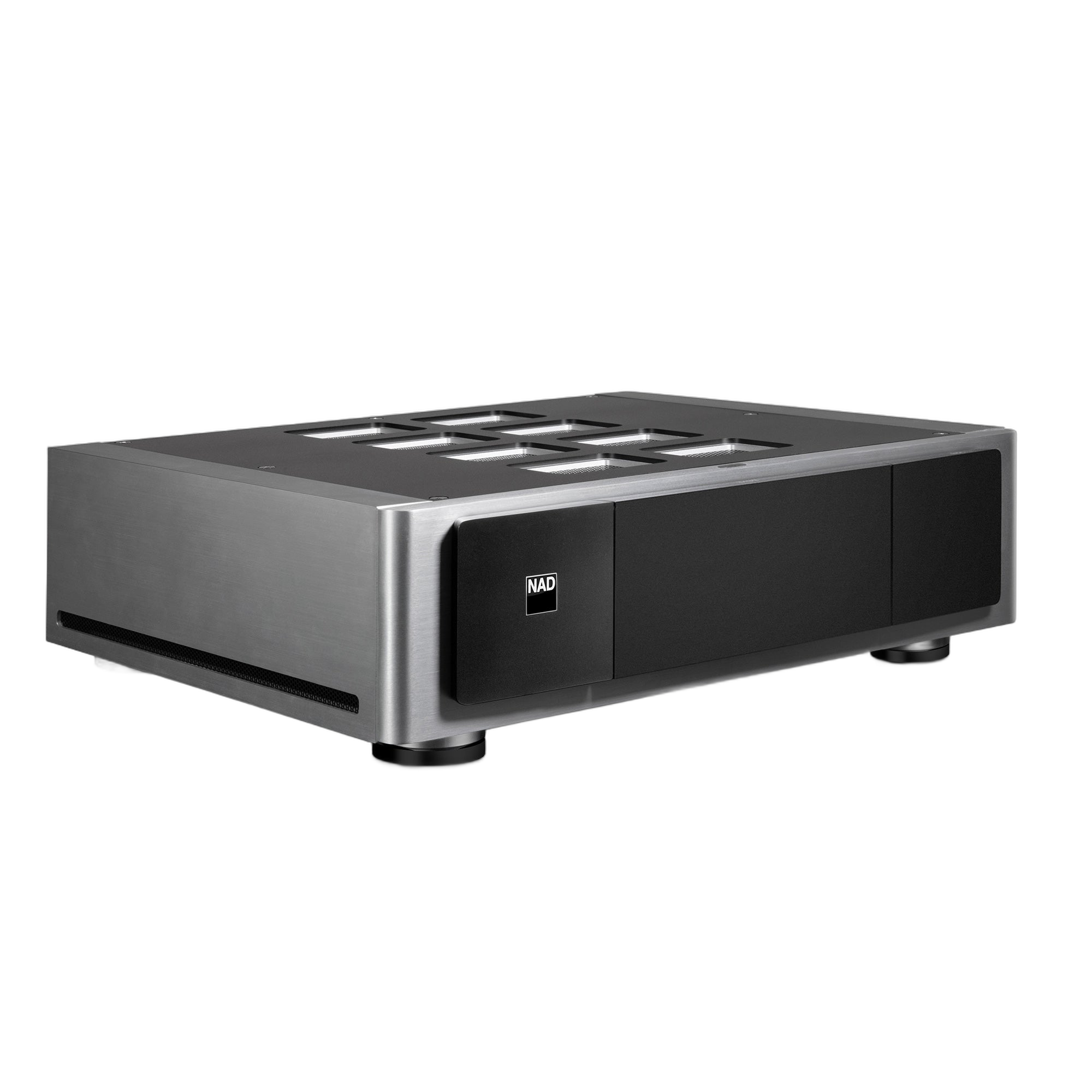

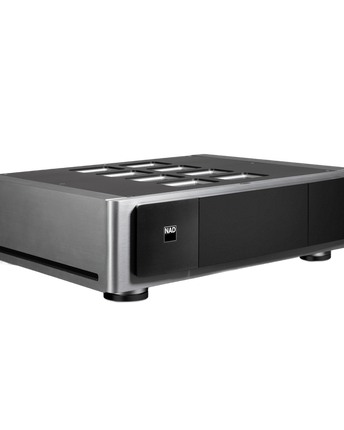

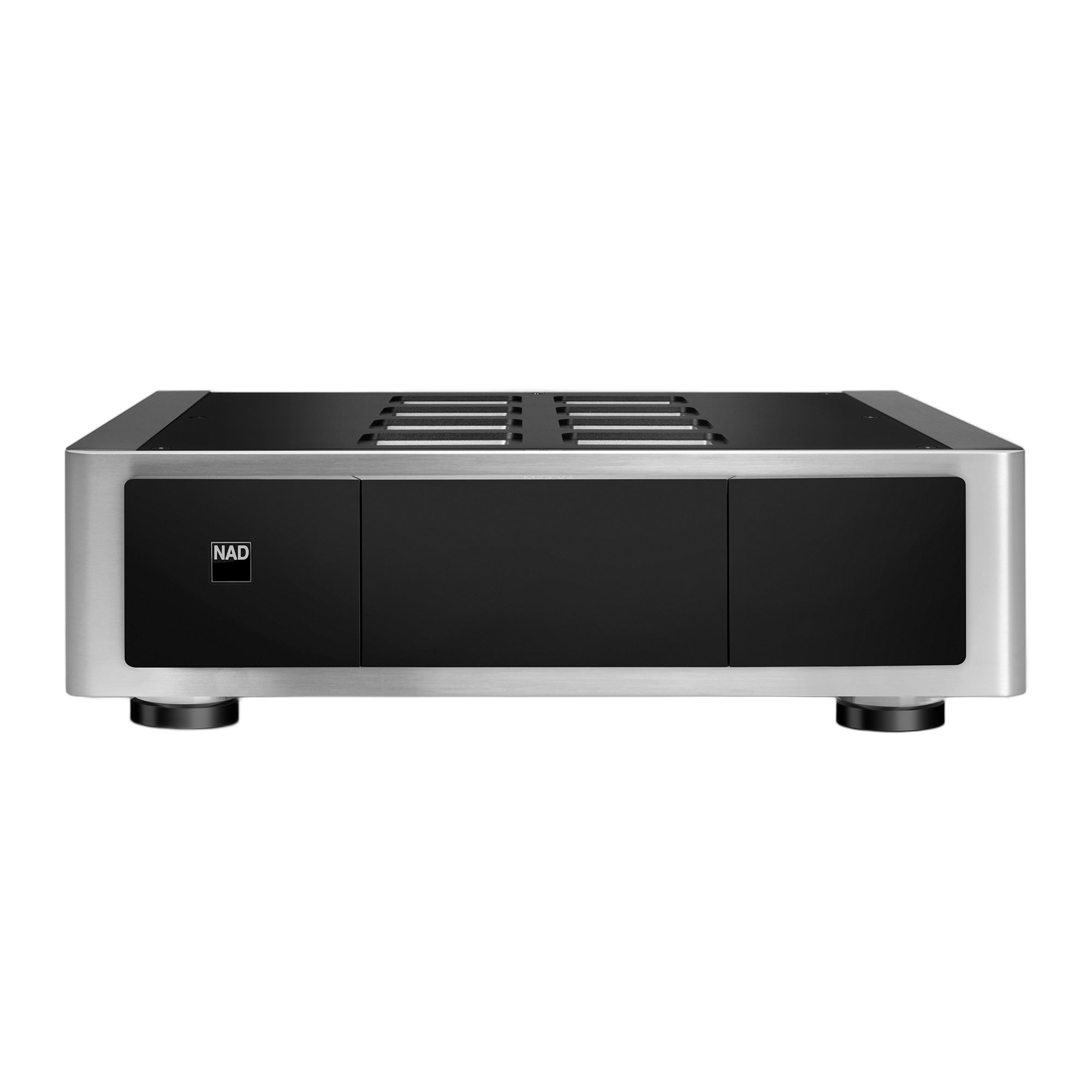

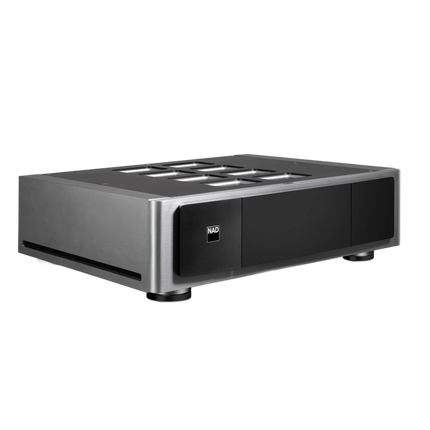

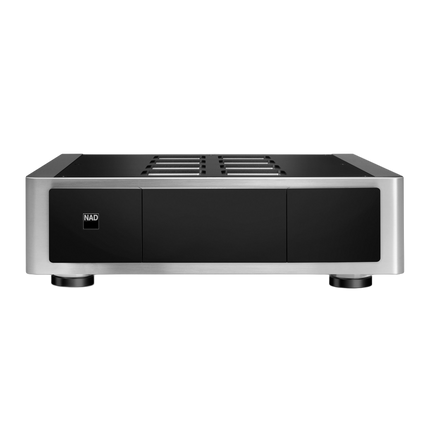

Amplificator de putere NAD M23 V2

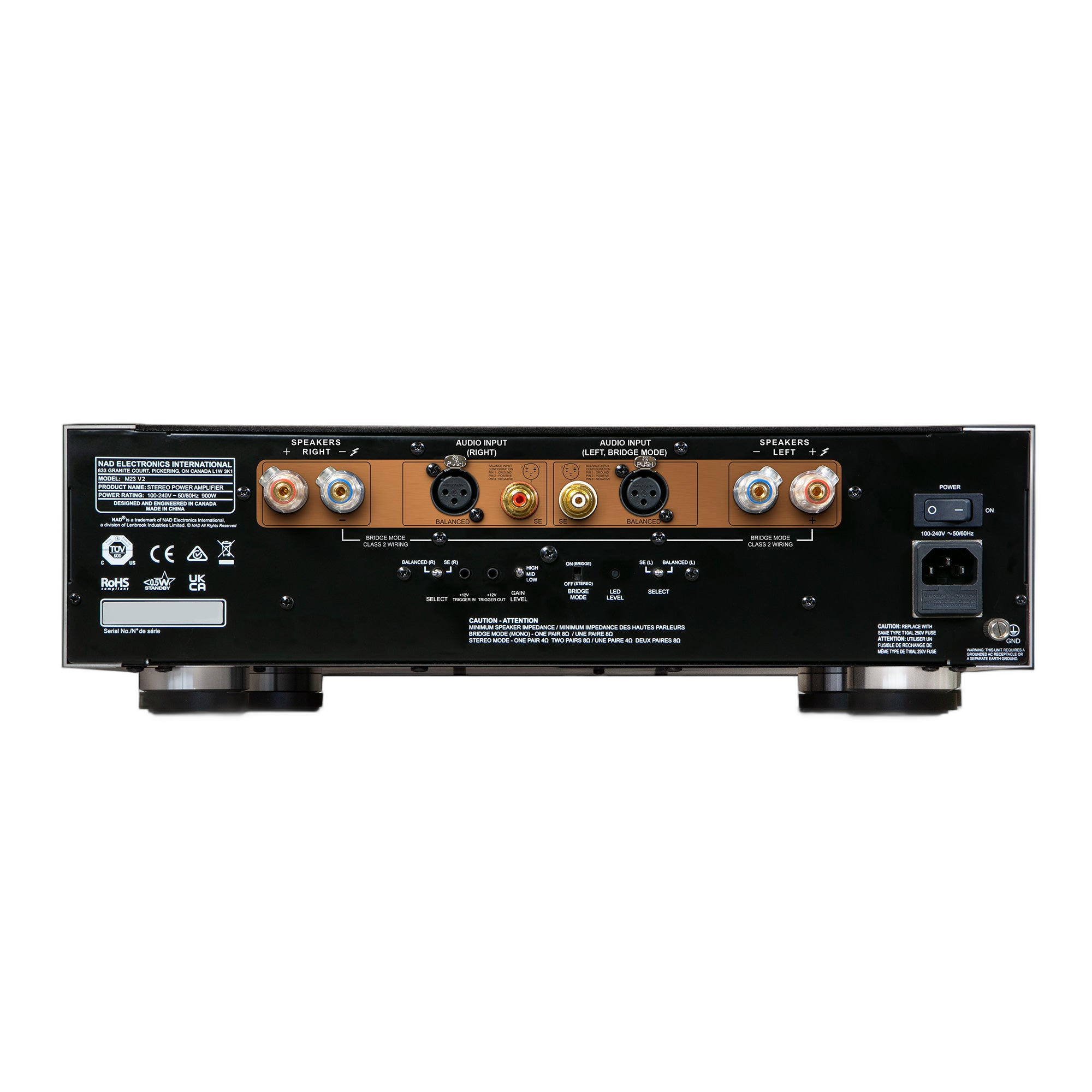

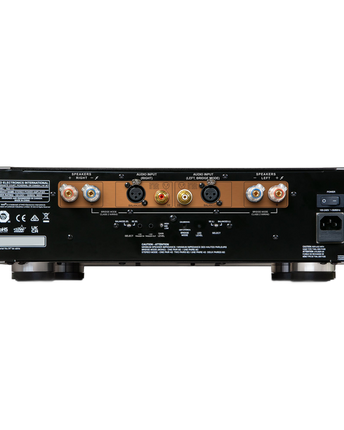

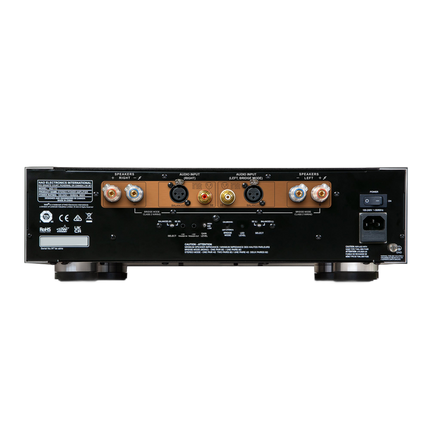

ANALOG AUDIO INPUT/SPEAKER OUT
Input impedance (R and C):
Single-ended: 56 kohms + 200 pF
Balanced: 56 kohms +200 pF
Frequency response (1W into 8 Ohms): ±0.06dB (20-20kHz)
Rated output power into 8 Ohms and 4 ohms(Stereo mode) 80 W (ref. 20 Hz-20 kHz at rated THD, both channels driven): >200W into 8 Ohm, >380W into 4 Ohm
Rated output power into 8 Ohms (Bridge mode, ref. 20 Hz-20 kHz at rated THD, both channels driven): >700W into 8 Ohm
THD (20 Hz – 20 kHz): <0.00069% (XLR), <0.0013% (RCA)
Signal-to-Noise Ratio:
>101.7 dB (1W into 8 Ohm)
>127 dB (200W into 8 Ohm)
Clipping power (Stereo mode, at 1 kHz 0.1 % THD): >210 W (0.1 % THD 1 kHz 8 ohms)
Clipping power (Bridge mode, at 1 kHz 0.1 % THD): > 770W
IHF dynamic power (Stereo mode, at 1 kHz):
8 ohms: 260 W
4 ohms: 520 W
IHF dynamic power (Bridge mode, at 1 kHz): 1017W
Peak output current: >25 A (in 1 ohm, 1 ms)
Damping factor: >800 (ref. 8 ohms, 20 Hz to 6.5 kHz)
Frequency response: ±0.06 dB (stereo), ±0.054 dB (bridged) 20 Hz -20 kHz -3 dB at 60 kHz
Channel separation:
High gain RCA: >97dB, Low gain XLR: >115dB (1kHz)
High gain RCA: >75dB, Low gain XLR: >96dB (10kHz)
Stereo Mode input sensitivity (for 200 W in 8 ohms): Low gain: 4.5V (low gain), 2.5V (Mid gain), 1.4V (High gain)
Stereo Mode Gain: 19dB (low), 23.9dB (mid), 29.2 (high)
Bridge Mode Gain: 25.1dB (low), 30dB (mid), 35.2 (high)
Standby Power: <0.5W

DIMENSIONS AND WEIGHT
Dimensions (W x H x D): 435 x 133 x 381 mm (17 1/8 x 5 1/4 x 15 “)
Net Weight: 9.7 kgs / 21.4 lbs
Shipping Weight: 17.5 kgs / 38.5 lbs
Shipping Size W x H x D: 569 x 258 x 519 mm (22 13/32 x 20 7/16 x 10 5/32 ”)
