Descriere
Caracteristici principale
- Amplificator stereo 2 x 30W
- Telecomanda inclusa cu 6 butoane preset (Ex: radio online, playlist TIDAL, podcast Spotify, etc)
- Airplay, Spotify Connect, Qplay, DLNA, UPnP
- Bluetooth 5.0, Ethernet RJ45,
- Audio decoding: Up to 24bit/192kHz
- Multiroom & online radio via 4Stream App
- EQ Settings
- Alarm Clock
- Line IN, USB stick playback
- Format compact - 132mm latime
Specificații tehnice
Garanție (luni)
24
Small But Complete In Every Detail
A30+ mini stereo amplifier packs 30 watts per channel which is perfect to your desktop stereo system.

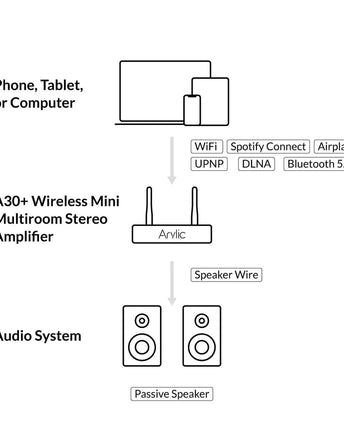

Best For Your First WiFi Stereo Amplifier
Our wireless streaming system is designed to be very simple, even for people who are not familiar with the electronics can quickly get started. There is clear step by step instructions in the app.
After the first setup of A30+ small stereo amplifier, you can stream directly from iPhone, iPad or Mac by Airplay or stream directly from Spotify both without app. The whole family can easily get started.
Play High Quality Audio Without The Hassle
Streaming by WiFi has stronger range signal and high quality audio transmission.
With A30+ mini speaker amp, you can stream anytime, anywhere with far distance from the device. Upgrade your listening experience far from Bluetooth streaming before.
Hook Up Whole House Audio
A30+ mini audio amplifier can play a different song in different rooms, or the same track in every room, or play some rocky music for whole house party!
Bring Hi-end music to every rooms and controlled by one single device.
Versatile Playing
Play from Amazon Music, Spotify, TIDAL, Qobuz, iHeartRadio, TuneIn, Napster, phone storage, NAS, USB stick,line in source, bluetooth source and more.
Stream any audio you want all in one A30+ small audio amplifier.
Personalize Your Sounds
A30+ mini stereo amplifier supports ACPWorkbench tuning tool which allows you do specific EQ adjustment, L/R balance, dynamic range and more.
Set your favorite tune with different type of music.
Technical Specifications
Newest Firmware Version: 4.6.415145.35

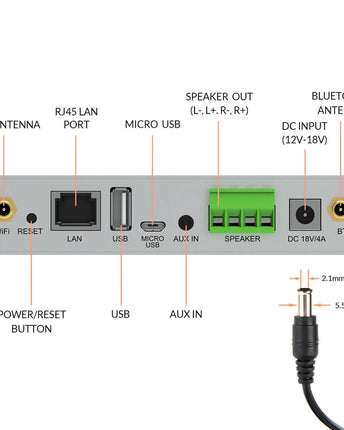

Connectivity
WiFi: IEEE802.11 b/g/n 2.4G
Bluetooth: 5.0 SBC/AAC, 15M, BT Receiver
Wired Network: Ethernet Single 10/100M RJ45
Power Input: 12V-18V/DC in
Audio Input:
Analog:
AUX (1Vrms)
Digital: Micro USB Input
Audio Output:
Analog:
AUX (1Vrms)
Speaker Out
Amplifier Chip: TPA3116
Speaker Power:
2 x 35W @ 4Ω load at 18V
2 x 18W @ 8Ω load at 18V
Speaker Impedance: 4-8Ω
USB Host: For USB pen drive/stick, 1000 songs limited
Frequency Response: 20Hz to 20kHz
THD + N: <0.03% @ 1kHz/1W/4Ω
Music Format: FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
Audio Format:
Decoding up to 192kHz/24bits
Output up to 44.1kHz/16bits CD quality
Protocols: AirPlay, DLNA, UPnP, Spotify Connect, Qplay
NAS: Support NAS with DLNA support
Dimensions: 131.8mm*85.5mm*27mm (5.18in*3.37in*1.06in)
Weight: 500g
Working temperature: 0~40℃

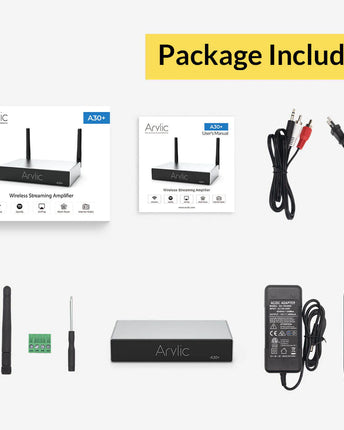

Accessory:
Power Supply
Screw Driver
RCA Cable
Remote
4Pin phoenix connector
External Antenna x2
User Manual
Power Button
Device on:
Short press once: Switch input mode
Long press once: Switch off
Short press twice: Disconnect current WiFi connection and enter pairing mode (WiFi mode);
Disconnect current connected Bluetooth device (Bluetooth mode)
Short press three times: Restore the factory settings
Device off:
Short press: Switch on
LED Indicators
⚪White-WiFi & network mode:
Flashing fast- device is booting
Flashing slow- waiting for WiFi connection
Solid- WiFi is connected
🔵Blue- Bluetooth mode:
Flashing slow- waiting for Bluetooth connection
Solid- Bluetooth is connected
🟢Green- Line in mode
🔴Red- USB mode
🟡Yellow- connect to PC
