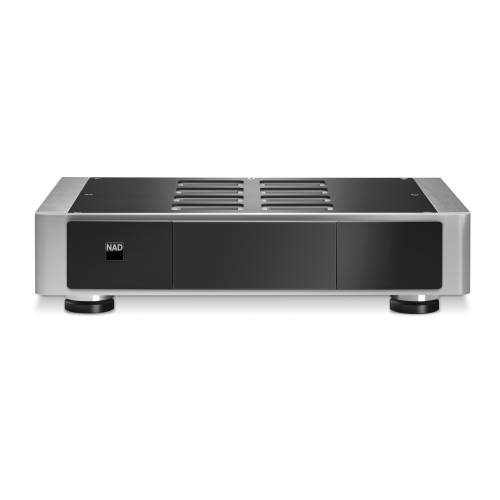

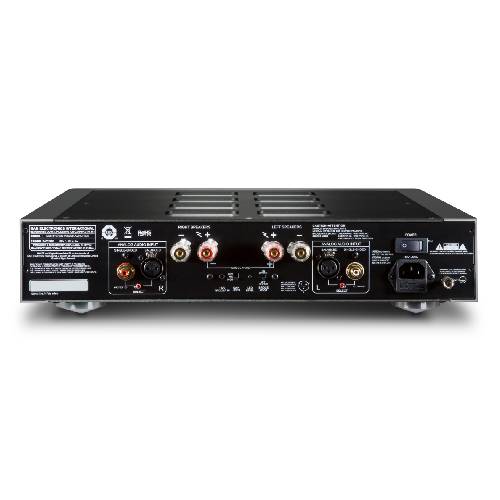

Amplificator NAD M22 V2

Stoc epuizat
NAD Cod: ref.42788
Transport gratuit
30 de zile retur "no comment"
Garantie 24 luni
Descriere

Caracteristici principale

  • Continuous output power into 8 ohms and 4 ohms (Stereo mode) 300 W (20 Hz-20 kHz at 0.1% THD, both channels driven)
  • Continuous output power into 8 ohms (Bridge mode) THD+N (20 Hz – 20 kHz, CCIF IMD, SMPTE IMD, DIM 100) 900 W (20 Hz – 20 kHz at 0.1% THD)
  • THD+N (20 Hz – 20 kHz, CCIF IMD, SMPTE IMD, DIM 100)<0.005 % (250 mW to 290W, 8 ohms and 4 ohms)
  • Frequency response ±0.1 dB (20 Hz – 20 kHz)
  • Input sensitivity (for 300W in 8 ohms)1.73 V
Specificații tehnice

Greutate produs

8.9kg

Dimensiuni produs

(W x H x D) 435 x 103 x 379 mm

Alte specificații

Signal-to-Noise Ratio
>100 dB (A-weighted, ref. 1 W in 8 ohms
>120 dB (A-weighted, ref. 300W in 8 ohms)

Clipping power (Stereo mode, at 1 kHz 8 ohms 0.1 % THD) >300 W
Clipping power (Bridge mode, at 1 kHz 8 ohms 0.1 % THD) >950 W

IHF dynamic power (Stereo mode, at 1 kHz 1 % THD)
8 ohms: 400 W
4 ohms: 700 W
2 ohms: 1000 W

Garanție (luni)

24

M22 V2
Stereo Power Amplifier

Hybrid Digital Amplification


The M22 is using the latest nCore amplifier technology licensed from Hypex to provide a nearly ideal amplifier with distortion below measurement, ultra-high damping factor, and unconditional stability with any speaker. Tight, detailed sound with amazing control and transparency gets the best performance available. With nCore, Hypex has refined their UcD concept to new levels of perfection by improving the modulator for more accurate feedback subtraction and PWM generation.

Effortless Power


Employing the latest generation of digital PowerDrive™, the M22 offers a minimum of 300W per channel with amazing reserves of dynamic power at lower impedances. The M22 is capable of >400W dynamic power per channel even in 8 ohms, >700W in 4 Ohms, and 1,000W in 2 ohms. Need more power? Select Bridge Mode and the M22 offers 950W at 8 Ohms in Mono. It can effortlessly power any loudspeaker to live performance levels with amazing efficiency and low power consumption.

Perfecting Performance

The output stage is only one of several circuits in the amplifier, and each must complement the other to obtain optimal performance. The amp is DC coupled throughout, from input to output, there is no capacitor in the forward signal path. Yet, it has a beneficial 12dB/octave roll-off below 2Hz. It does this using a unique circuit topology that is functionally a forward servo. It is however not a servo in the traditional sense as it does not measure DC at the output and send back a correction signal. Instead part of the input signal is fed to a side chain with a second order low-pass filter.

Clean and Dynamic

The performance of the entire signal path is critically dependent on the power supply; in this case a well regulated, but not too tight, custom switch mode design. This allows maximum dynamic power, very high current yet with very low distortion. Secondary supplies are individually regulated and decoupled at each opamp for lowest possible noise and maximum dynamic range.
